Magnesium hydroxide is a high-performance filler flame retardant produced through a chemical process, offering excellent flame retardancy and smoke suppression.
Item No.:
ASFRBrand:
iSuoChemColor:

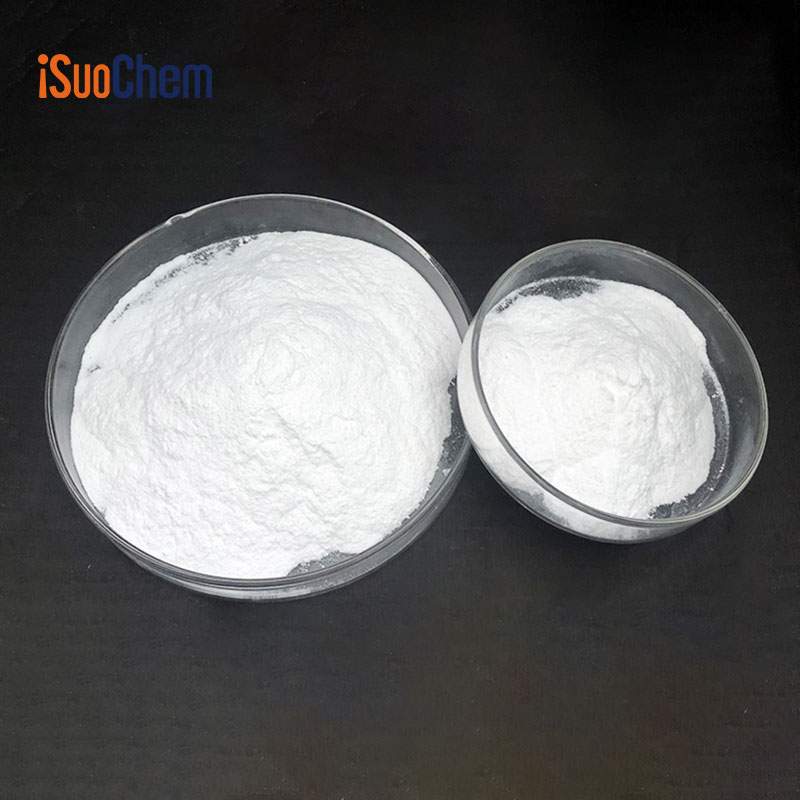

White powderFeatures:
Highly-flame retardant halogen-freeProduct Description
Under high temperatures, magnesium hydroxide decomposes. This releases bound water and absorbs significant latent heat. As a result, the surface temperature of polymer materials drops sharply, delaying combustion effectively.
The decomposition also produces magnesium oxide—a heat-resistant material. It forms a dense protective layer, boosting the material’s fire resistance.
Additionally, the released water vapor dilutes flammable gases. It also suppresses smoke formation. This dual action makes magnesium hydroxide a highly effective, green flame retardant with smoke-reducing properties.
This product is suitable for use in various polymer materials, such as plastics, rubber, and cables. While ensuring flame retardancy, it is also environmentally friendly, non-toxic, and halogen-free, making it an ideal alternative to traditional flame retardants.
CAS No.: 1309-42-8
Product performance reference table
|
Typical indicators |
ASFR-22 |
ASFR-61 |
|
Magnesium hydroxide (Mg(OH)₂),% |
≥99 |
≥98.5 |
|
Iron ion (Fe³+),% |
≤0.005 |
≤0.005 |
|
Chloride ion (Cl-),% |
≤0.05 |
≤0.4 |
|
Surface moisture, % |
≤0.5 |
≤0.5 |
|
Particle size (d50), μm |
1.5 |
1.5 |
|
(Hunter) Whiteness |
≥97 |
≥97 |
Note: The data listed are typical values for product performance parameters and do not represent product specifications.
Recommended modifications:
|
Modified grades |
Performance characteristics of Magnesium Hydroxide |
|
A |
Water resistance, dispersibility |
|
B |
Water resistance, dispersibility |
|
J |
Elongation (high filling), smoke density |
|
F |
Excellent water resistance and strength (cross-linked system) |
|
N |
Excellent water resistance, elongation (cross-linked system) |
|
S |
Excellent water resistance, excellent elongation, and processing fluidity |
|
X |
Water resistance, processing fluidity, oxygen index |
Highly-flame retardant halogen-free system flame retardant (60% MDH)
|
Flame retardant material properties |
Conventional modified magnesium hydroxide |
ASFR-22-J |
|
Machining balance torque, Nm |
59-60 |
59-60 |
|
Tensile strength, MPa |
13.8 |
14.0 |
|
Elongation at break, % |
178 |
193 |
|
Oxygen index, % |
34 |
35 |
|
Smoke density (flameless) |
275 |
280 |
Product Features: Highly filled system with high elongation
Magnesium-aluminum composite system (10% MDH)
|
Flame retardant material properties |
aluminum hydroxide |
ASFR-61-B |
|
Melt index (150°C, 21.6kg), g/10min |
5.7 |
5.1 |
|
Tensile strength, MPa |
12.2 |
12.5 |
|
Elongation at break, % |
192 |
184 |
|
Oxygen index, % |
33 |
35 |
|
Smoke density (flameless) |
339 |
216 |
Product features: Improve flame retardant performance and reduce smoke density
Product Packaging
Magnesium Hydroxide ASFR-22 Series: 20kg waterproof bag, 1000kg pallet
ASFR-61 Series: 20kg or 25kg waterproof bag, 1000kg or 1250kg pallet
