Nonwoven Fusible Fabric PA Hotmelt Adhesive Film

Hot Melt Adhesive Film is the adhesive formed in film with or without Release Paper.

Item No.:
F5103
Brand:
iSuoChem
Color:
Clear
Appearance:
Film shape

Request free sample

Product Details

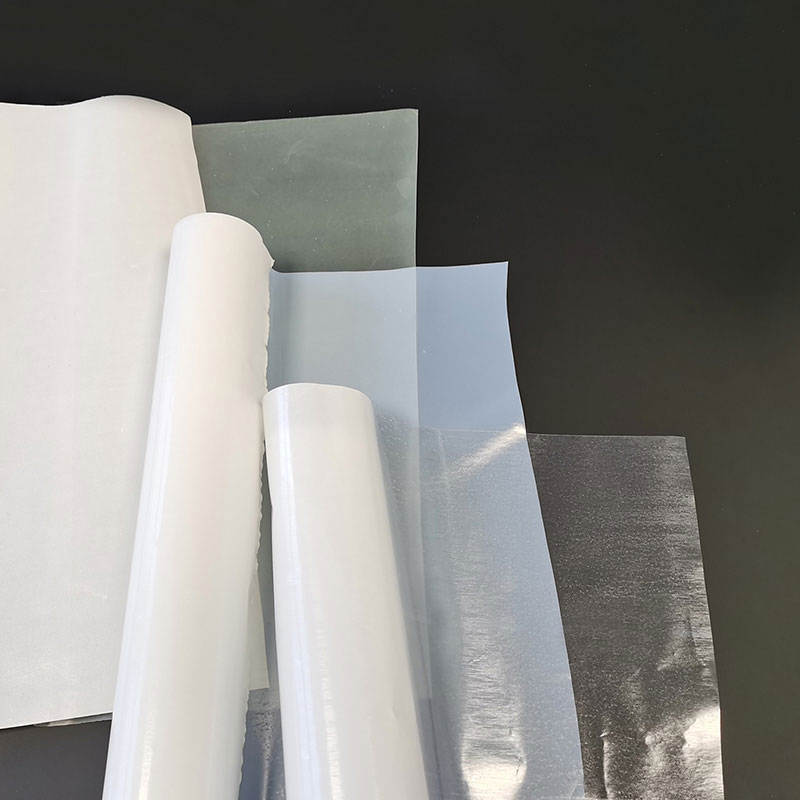

Hotmelt adhesive film

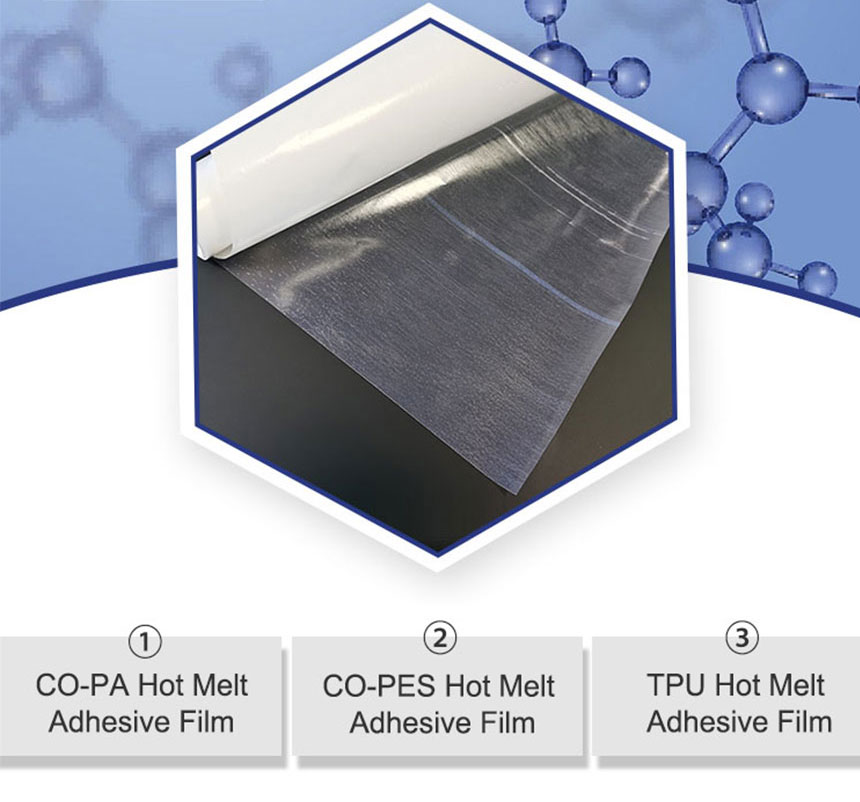

iSuoChem Hot melt adhesive films have 3 series: CO-PA Hot melt adhesive film, CO-PES Hot melt adhesive film, TPU Hot melt adhesive film.

Hotmelt adhesive film is quite welcomed by manufactuers. As it is easy for bonding, and suitable for continuous or intermittent processing

Adhesive film for quality assurance

Adhesive Film Feature: Self fusible, Double sides fusible, No bad smell after fusing.

Color: Clear, Yellowish, White color

Width range: 8mm ~ 3000mm

Thickness: 0.06 ~ 0.15mm or Customized

Hot Melt Adhesive Film

Product Parameters of Hotmelt adhesive films

List 1

Type	8801	8902	8301	8303	8305	5901	5908	5916
Composition	COPA	COPA	COPA	COPA	COPA	COPES	COPES	COPES
Width (mm)	15-1300	500-1500	500-1500	500-1500	50-1500	15-1300	500-1500	500-1500
Melting point (DSC)	98-115	72-90	115-125	75-85	80-120	110-130	90-100	120-130
Temperature of Hot stamping (ºC)	130-150	100-120	125-145	100-120	100-130	120-135	130-150	130-160
Pressure of Hot stamping (kg/cm2)	1.5-3.0	1.5-3.0	1..5-2.5	1.0-4.0	1.5-2.5	1.5-3.0	1.5-3.0	1.5-3.0
Time of Hot stamping (s)	10-30	10-15	8-12	10-15	8-12	10-30	8-12	10-15

List 2

Type	5301	5304	5305	5901	5902	5601	HMT730	HMT320
Composition	COPES	COPES	COPES	TPU	TPU	TPU	Compound	Compound
Width (mm)	7-3200	7-3200	7-3200	7-3200	7-3200	7-3200	610	610
Melting point (DSC)	110-120	105-115	85-115	44-68	88-120	75-90	130-140	95-100
Temperature of Hot stamping (ºC)	120-140	120-140	140-160	100-130	135-160	100-120	150-250	130-200
Pressure of Hot stamping (kg/cm2)	1.5-2.5	1.5-2.5	1.0-4.0	1.5-2.5	1.5-2.5	1.5-3.0	/	/
Time of Hot stamping (s)	8-12	8-12	10-15	8-12	8-12	10-15	3-8	3-8
